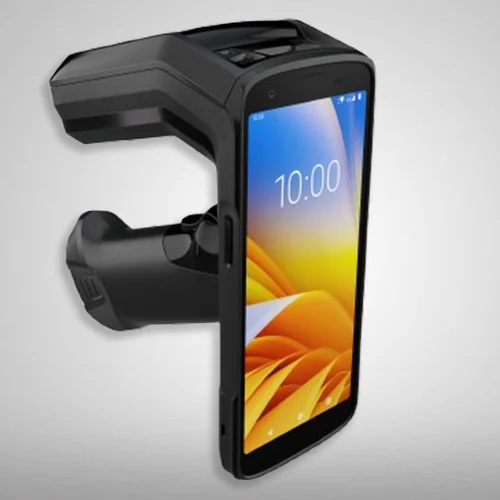

| Zebra TC22R RFID Handheld Reader that gives your workforce an advanced edge in enterprise RFID data capture and mobile computing. The TC22R-RFID reader is built on the
Zebra TC22 mobile computer platform and comes integrated with a powerful long-range RFID engine – TC22 RFID Reader, leveraging Zebra’s latest RFID engine technology similar to the RFD40series. With its ergonomic gun-grip design and physical trigger, the TC22R offers fast, accurate, and comfortable RFID tag capture over extended periods. It can easily scan up to 1300 tags per second, even in high-volume scanning environments.
The Zebra TC22R handheld reader runs on the Android platform (upgradable to Android 16), features a large 6-inch touchscreen display, and supports advanced connectivity options such as 5G, Wi-Fi™ 6E, Bluetooth® 5.2, BLE, and NFC. Along with RFID, it comes equipped with Zebra’s SE4710 1D/2D barcode scan engine, ensuring seamless scanning of barcodes and RFID tags in a single rugged device.
TC22R-RFID by Zebra is designed with 6GB/64GB flash memory, a 4dBi integrated antenna offering 40 feet (12.2m) read range indoors and outdoors. The rugged, small, and lightweight design makes it a suitable reader for order fulfillment, warehouse inventory auditing, assembly lines, item finding, etc. Designed for enterprise use, the Zebra TC22R offers IP65 sealing, is tested for 5-foot drops to concrete, and is engineered for reliability in demanding environments like retail, warehousing, logistics, manufacturing, and field operations. |
|
Specifications |
|
| Operating Frequency | 865 – 867 MHz |
| Communication Protocol | EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63) |
| Dimensions | 145mm(H) x 84mm(W) x 177mm(L) |
| Weight | 569g |
| Display | 6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits |
| Power | 7,000 mAh Li-Ion battery with PowerPrecision+ for real-time battery metrics |
| Network Connections | WLAN, WPAN |
| Notifications | Audible tone, vibration |
| Interface Ports | USB 3.1 (Bottom Type C), Super Speed (host and client) |
| CPU | 5430 hexa-core 2.1 GHz |
| Operating System | Android |
| Memory | 6 GB RAM / 64 GB Flash |
| Maximum RFID Read Rate | Up to 1,300 tags/sec |
| Read Range | Up to 12.2m |
| Integrated RFID Antenna Gain | 4 dBi |
| Scanning | SE4710 1D/2D scan engine |
| Camera | Forward-facing 16 MP camera, front-facing 5 MP camera |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support |
| Bluetooth | Class 2, Bluetooth v5.2 |
| Operating Temperature | -10° C to +50° C |
| Storage Temperature | -40° C to +70° C |
| IP Rating | IP65 |
Downloads |
|
|
|
|
FAQsWhat is the cost of the Zebra TC22R RFID Handheld Reader?The TC22R is a next-generation RFID mobile computer from Zebra Technologies. This latest reader is designed as a cost-effective reader for businesses that earlier used TC22 with the RFD40 premium RFID reader, thus reasonably priced in India. For the current price of the Zebra TC22R handheld reader and other Zebra RFID products, contact our product specialists here. What are the connectivity options available with the Zebra TC22R?The Zebra TC22R supports multiple connectivity options, including: • Wi-Fi 6E • Bluetooth® 5.2, BLE • NFC • 5G LTE • USB-C What is the RFID capability of the Zebra TC22R?The Zebra TC22R comes with integrated long-range RFID reading, powered by Zebra’s high-performance RFID engine technology (comparable to the RFD40). It delivers fast, accurate, and high-volume tag capture, making it suitable for environments with dense RFID tag populations. The ergonomic gun grip and trigger provide maximum comfort for all-day intensive RFID scanning. Why buy the Zebra TC22R RFID Handheld Reader?There are many reasons to buy the Zebra TC22R RFID handheld reader, including:
What is the warranty on the Zebra TC22R RFID Handheld Reader?The Zebra TC22R comes with a 1-year standard warranty from Zebra Technologies, valid from the date of purchase. Where can you buy a Zebra TC22R RFID Handheld Reader from?You can buy the Zebra TC22R RFID Handheld Reader from Smartag.com. Apart from the TC22R, we also offer Zebra TC22 mobile computer, TC26, TC57x, Zebra MC3330xR and MC3390xR RFID handheld readers, Zebra RFD40, and Zebra FX9600 fixed RFID readers. |
|
